Voltage: AC220V-240V 50/60Hz or AC110V ±5%, 60Hz

Power Consumption: 400W/hDimensions: W2360 x D2360 x H2500 mm

Weight: 220 KG

Material: High-quality industrial ABS + Steel

Base: Hexagonal base with space theme graphicsColor Theme: Red, White, and Black

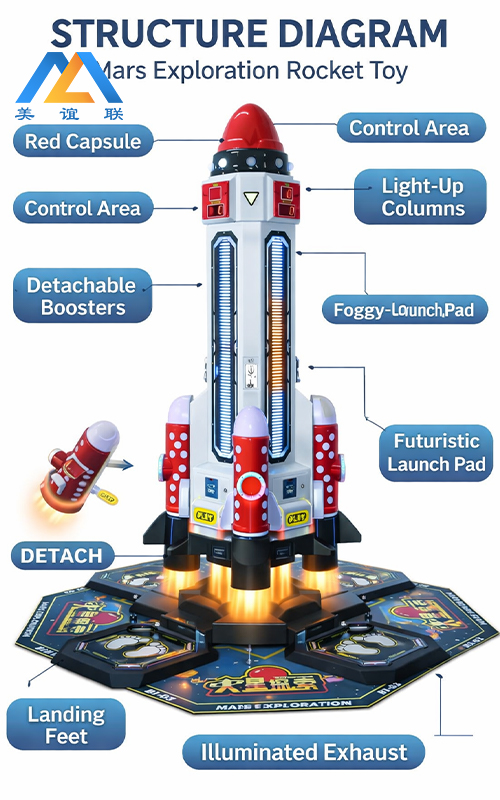

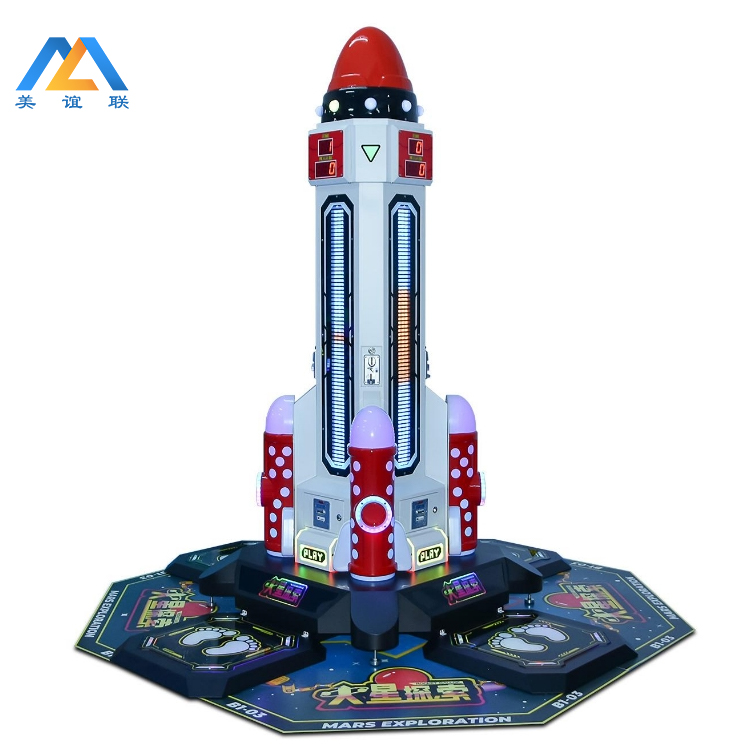

Structure: Rocket-inspired tower with LED scoring and countdown indicators

Control: Coin-operated

Sensor Type: Independent high-sensitivity pressure sensors under each pedal

Feedback: Real-time LED score display + sound effects

Game Time: Adjustable, commonly 60 seconds

Start Method: Insert coin and step on corresponding pedal

Interaction: Real-time light and sound feedback for enhanced excitement

Audio: Dynamic sound effects with rhythm-changing audio

Lighting: LED lighting effects that sync with gameplay

Safety Features: Non-slip pedal surface

Pedal Reset: Independent spring return system for each pedal

Scoring System: real-time display

Winning Condition: First player to reach the top of energy bar wins

Installation: Plug and play

Maintenance: Easy access panels for quick servicing

Usage Environment: Indoor amusement venues

Startup Time: Less than 30 seconds

Operation Mode: Multi-player simultaneous gameplay

Coin Mechanism: One for each pedal area

Game Countdown: 10-second pre-game countdown with voice prompt

Score Display: Each side has independent LED scoring screen

Usage Purpose: Entertainment, competition, fitness

Pedal Distribution: Evenly distributed around equipment

Durability: Built for high-traffic commercial use

Target Audience: Children, Teens, Adults

Game Feedback: LED flashes and sound upon game end

Token Redemption: Supports ticket output based on final score

Operation Safety: Anti-slip pedals prevent slipping during jump

Languages Supported: Multilingual voice prompts available

Transport Packaging: Wooden case or export standard packaging

After-Sales Service: Online technical support available

Game controls

(1) Start the game

1. The player selects any pedal (such as pedal 1) and puts in the corresponding amount of game coins in the corresponding coin area 1. After the coin is successfully put in, the device will sound a prompt tone and the corresponding light effect device on the 1st side will be briefly lit up and then turned off to indicate that the coin is successfully put in.

2. When the player presses the corresponding No.1 pedal, the device starts a 10-second countdown, during which there will be corresponding sound effects and a countdown on the "Time" LCD screen. After 10 seconds, the game officially starts.

(2) Game process

    3. When the game starts, the player steps on the corresponding pedal (such as pedal 1) that has started the game within a time limit (which can be adjusted according to the arcade setting, such as 60 seconds). Each step will record one point, and the "score" LCD screen will update the score in real time.

    4. The same player cannot use multiple pedals at the same time. Each player can only choose one pedal to play at a time. Different players can put coins in the coin area of different pedals and step on the corresponding pedal to start the game. Then, they can step on the corresponding pedal to score points within their respective time limits.

    5. During the game, the device will emit dynamic sound effects. As the score increases, the rhythm of the sound effects will change accordingly, and the lighting effects will also speed up in sync with the rhythm of the sound effects, enhancing the fun and tension of the game.

 (3) The game is over

    6. When the game time corresponding to a pedal that starts the game ends, the device will emit an end prompt tone. The lighting effect on the corresponding side will flash rapidly and then go out, and at the same time, the number of redeemable lottery tickets will be calculated based on the final score of that pedal.

Product Advantages

High Interactivity – Supports up to 4 players competing simultaneously, creating strong engagement

Real Physical Movement – Players activate the system through jumping and running, promoting real exercise

Easy to Learn – Simple rules, no complicated instructions required

Strong Competitive Experience – Visual energy bars show progress clearly and enhance excitement

Fun + Fitness Combination – Perfect balance between entertainment and physical training

Eye-Catching Design – Rocket-shaped appearance with dynamic lighting attracts attention instantly

Strong Audience Appeal – Exciting to watch, not just to play

Family-Friendly – Ideal for parent-child interaction and group play

High Replay Value – Short game rounds encourage repeated participation

Excellent Space Efficiency – Compact footprint with high revenue per square meter

Low Operational Cost – Simple operation, minimal staff training required

Wide Age Range – Suitable for children, teenagers, and adults

High Safety Level – No high-speed mechanical parts; based on natural body movement

Real-Time Feedback – Energy bars provide instant visual response

Strong Crowd-Attracting Power – Lights, sounds, and competition naturally draw crowds
